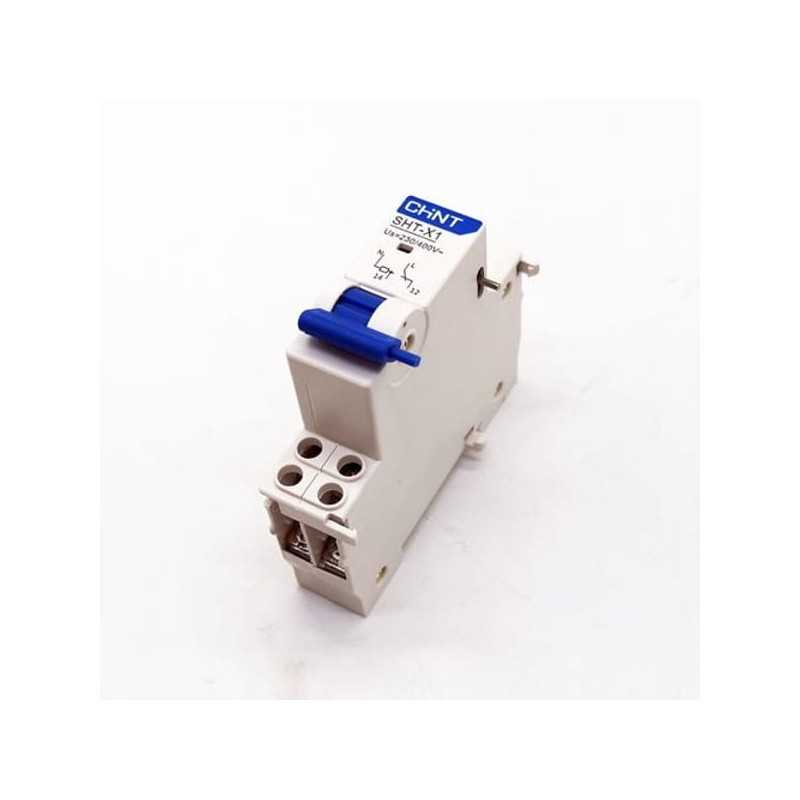

Bobina de Disparo CHINT SHT‑X1 para Interruptor NXB‑63 – AC/DC 24 V – Código 070500501CH
Bobina de Disparo CHINT SHT‑X1 para Interruptor NXB‑63 – AC/DC 24 V – Código 070500501CH
Bobina de disparo CHINT SHT‑X1 diseñada para activarse lateralmente en interruptores NXB‑63. Permite disparo remoto mediante señal eléctrica (24 V AC/DC) cuando se detecta una falla, con fiabilidad garantizada entre 70 % y 110 % del voltaje nominal.
|
Parámetro |
Valor |
|---|---|
|
Modelo |
SHT‑X1 |
|
Código |
070500501CH |
|
Compatibilidad |
Interruptores CHINT NXB‑63 (1–4 P) |
|
Tensión de alimentación |
24 V AC/DC, 50 Hz |
|
Rango operativo |
70–110 % Us (voltaje nominal) |
|
Corriente nominal |
6 A a 240 V AC / 3 A a 415 V AC |
|
Tensión de aislamiento (Ui) |
500 V |
|
Montaje |
Lateral en riel DIN – acoplado al cuerpo del interruptor |
|
Dimensiones (An×Al×Pr) |
18 × 79 × 76.7 mm |
|
Peso |
53 g |
|
Vida mecánica/eléctrica |
≥ 4 000 ciclos (uso combinado con NXB‑63) |
