Bobina de Disparo CHINT SHT‑X3 para Interruptor NXB‑125 230/400 V AC – Código 070500506CH
Bobina de Disparo CHINT SHT‑X3 para Interruptor NXB‑125 230/400 V AC – Código 070500506CH

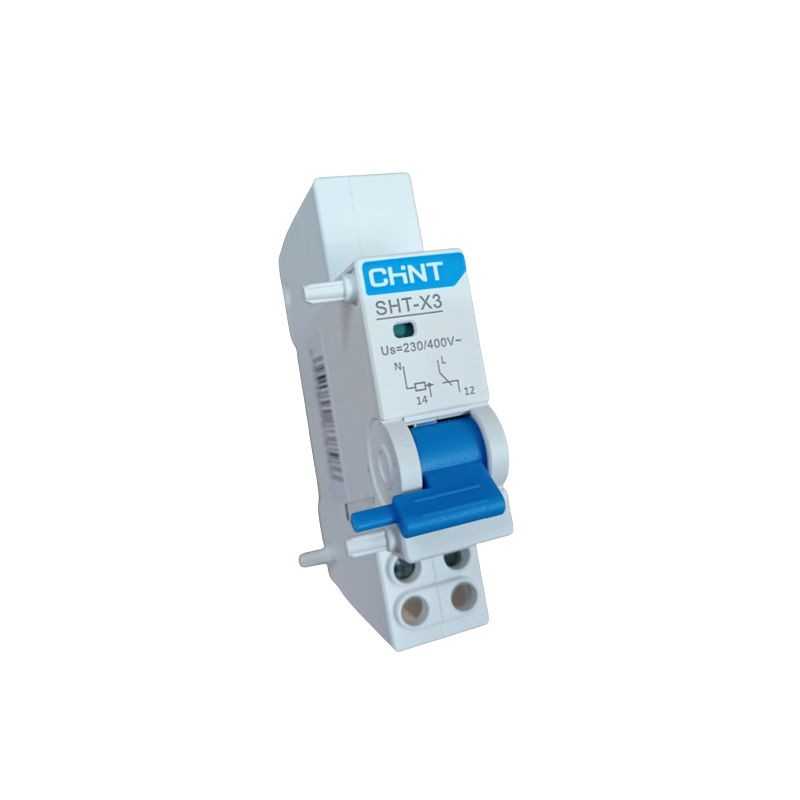

Bobina lateral CHINT SHT‑X3 diseñada para montaje en interruptores NXB‑125. Permite disparo remoto confiable con señal eléctrica de 230 V o 400 V AC, operando en un rango de 70–110 % del voltaje nominal para controlar fallas o automatización.
|
Parámetro |
Valor |
|---|---|
|
Modelo |
SHT‑X3 |
|
Código |
070500506CH |
|
Compatibilidad |
Interruptores CHINT NXB‑125 (1–4 P) |
|
Tensión de alimentación nominal (Uₑ) |
AC 230 V / 400 V, 50 Hz |
|
Rango operativo |
70 % – 110 % de Uₑ, dispara fiablemente dentro de ese rango |
|
Corriente nominal |
6 A a 240 V AC / 3 A a 415 V AC |
|
Tensión de aislamiento (Ui) |
500 V |
|
Vida útil mecánica y eléctrica |
≥ 4 000 ciclos con el interruptor NXB‑125 |
|
Montaje |
Lateral sobre riel DIN TH35, integrado al cuerpo del interruptor |
|
Dimensiones (An × Al × Pr) |
~18 × 79 × 76,7 mm |
|
Peso |
~53 g |
