Bobina de disparo (Shunt Release) CHINT NM8N‑800 SHT24‑M8 220–240 Vac – Código 072201508CH
Bobina de disparo (Shunt Release) CHINT NM8N‑800 SHT24‑M8 220–240 Vac – Código 072201508CH

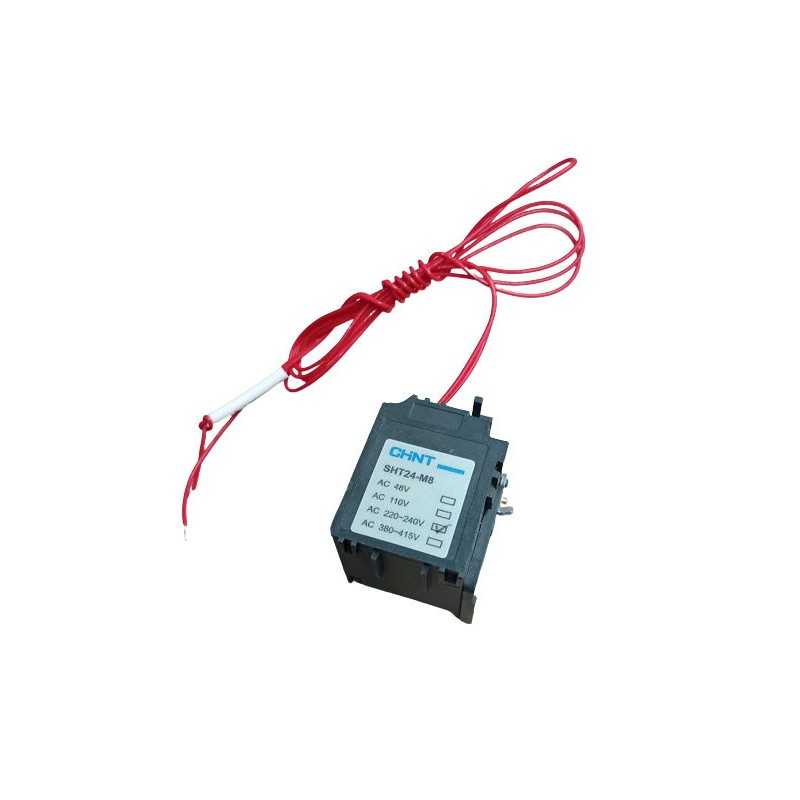

Bobina de disparo CHINT modelo NM8N‑800 (SHT24‑M8), diseñada para operación a 220–240 Vc – 50/60 Hz. Instalación integrada en interruptores NM8N‑800; permite el disparo remoto del MCCB bajo condiciones de fallo o control externo. Rango confiable de disparo entre 70 % y 110 % de la tensión de trabajo nominal.
|
Parámetro |
Valor |
|---|---|
|
Modelo |
NM8N‑800 (SHT24‑M8) |
|
Código |
072201508CH |
|
Tipo de tensión de control |
220–240 Vac ±10 %, 50/60 Hz |
|
Rango de disparo (%) |
70 % – 110 % de la tensión nominal |
|
Consumo eléctrico |
≈ 2,2 W |
|
Compatibilidad |
Interruptores NM8N‑800, marco serie NM8N/SM6 |
|
Función |
Activación de disparo remoto del MCCB |
|
Tiempo de respuesta |
20 ms ≤ t ≤ 60 ms (empuje impulsional instantáneo) |
|
Montaje |
Integrada en accesorio SM6 del interruptor NM8N‑800 |
|
Normativa |
Referencial IEC/EN 60947‑2 según catálogo NM8N |
|
Temperatura de trabajo |
–5 °C a +40 °C (según especificación del fabricante) |
|
Estado |
Componente original CHINT, sin fusible interno (opcional) |
