Pulsador doble CHINT Ø22 mm 1 NA (verde) + 1 NC (rojo) – Código 2503133CH
Pulsador doble CHINT Ø22 mm 1 NA (verde) + 1 NC (rojo) – Código 2503133CH

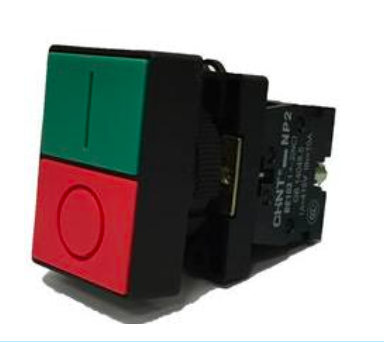

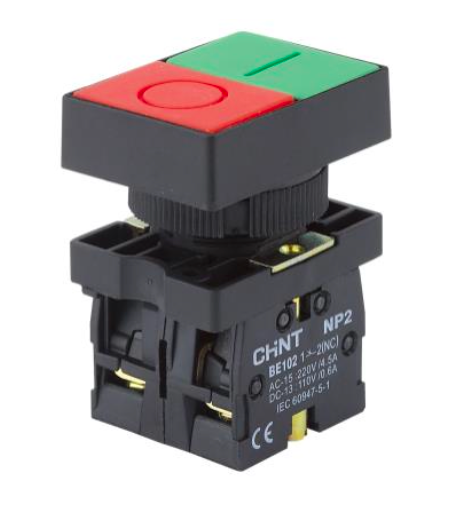

Pulsador modular CHINT equipado con dos cabezales Ø22 mm: uno verde normalmente abierto (1 NA) y uno rojo normalmente cerrado (1 NC). Diseñado para señalizar funciones de start/stop en tableros y sistemas de control, con montaje compacto y mecanismo de retorno por resorte.
|
Parámetro |
Valor |
|---|---|
|
Modelo |
Pulsador doble Ø22 mm CHINT |
|
Código |
2503133CH |
|
Tipo de contacto |
1 NA (verde) + 1 NC (rojo) |
|
Diámetro montura |
Ø22 mm |
|
Tipo de pulsador |
Return spring (retorno automático) |
|
Montaje |
Panel estándar, sistema modular (serie NP2/BL832) () |
|
Conexión |
Terminales de tornillo o conector |
|
Corriente térmica (Ith) |
Hasta 6 – 10 A (AC‑15 según catálogo NP2 y Harmony XB5) () |
|
Tensión nominal (Ui) |
Hasta 600 V (certificación IEC/EN 60947‑5‑1) () |
|
Impulso soportado (Uimp) |
~6 kV () |
|
Grado de protección |
IP50–IP65 (según botón y ensamblaje) () |
|
Frecuencia |
50/60 Hz |
|
Vida mecánica |
≥ 1 000 000 ciclos (Harmony XB5) () |
|
Normativa |
IEC/EN 60947‑5‑1 (pulsadores modulares) () |
|
Material de cuerpo |
Plástico con marco metálico (según versión) |
|
Aplicaciones |
Control de máquina, funciones start/stop, señalización en paneles |
