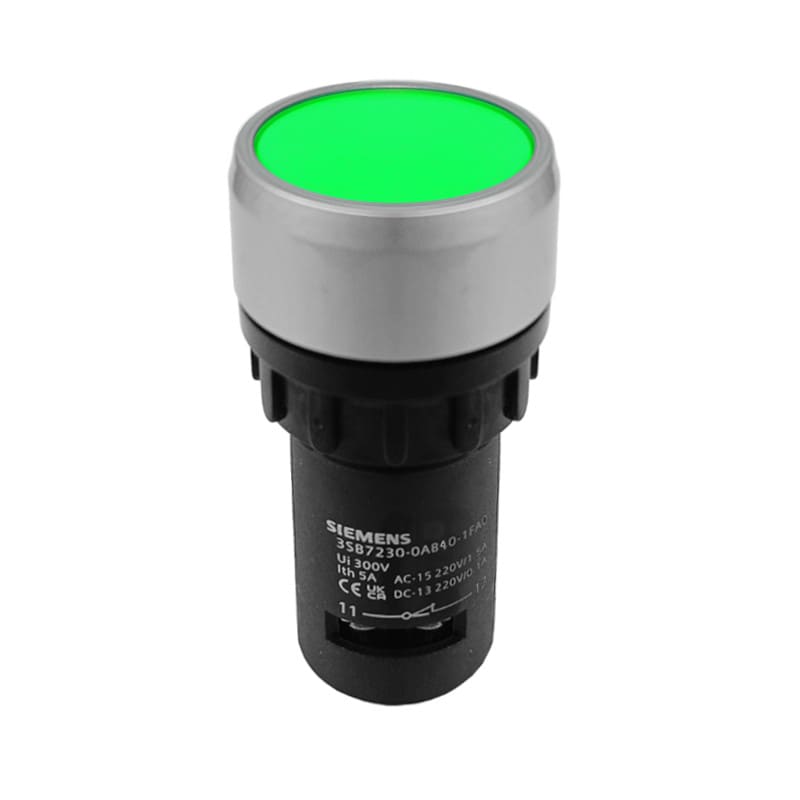

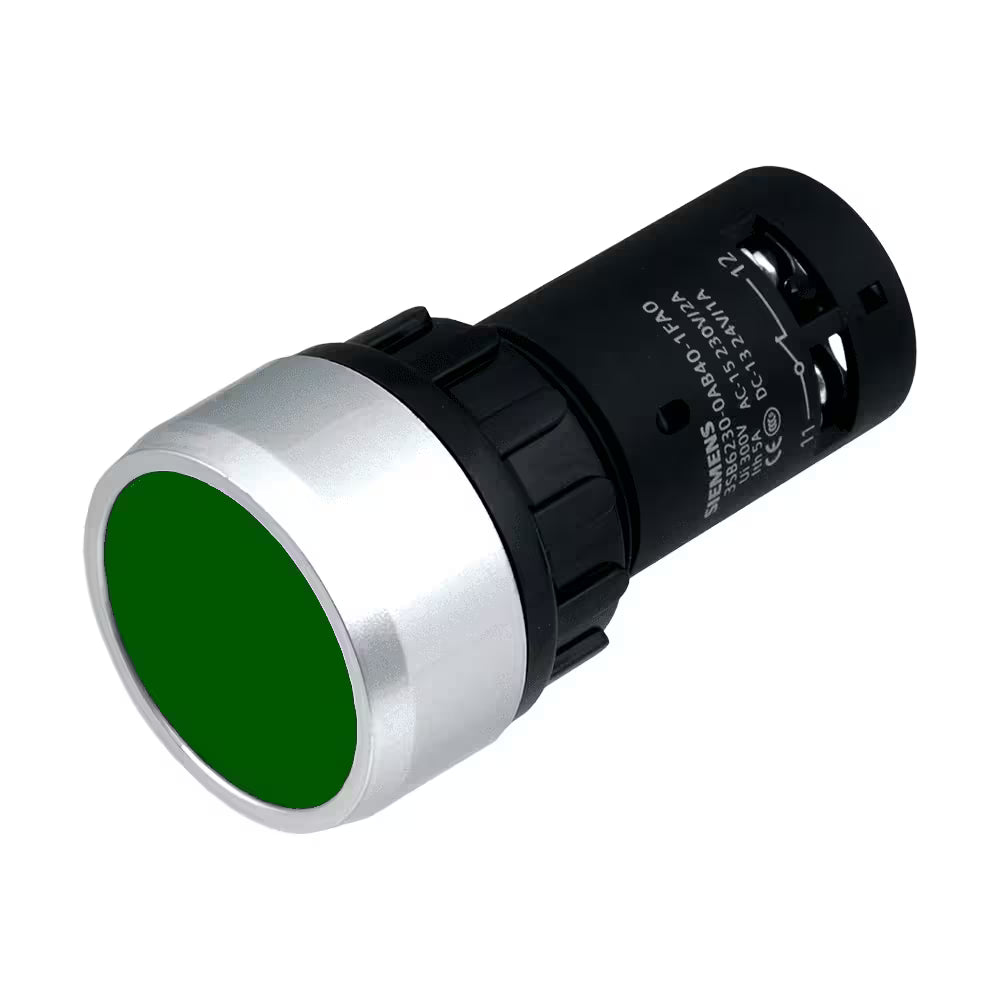

Pulsador Siemens verde 1NO 1NC - 3SB7230-0AB40-1FA0

product brand name

SIRIUS

product category

Commanding and signaling devices

product designation

Pushbutton

design of the product

Compact unit

product type designation

3SB7

product line

Plastic, metalized, matt, 22 mm

number of command points

principle of operation of the actuating element

momentary

product extension optional light source

No

color of the actuating element

green

shape of the actuating element

round

product component front ring

No

material of the front ring

plastic

color of the front ring

silver

product component light source

No

shock resistance according to IEC 60068-2-27

5g / 11 ms

vibration resistance according to IEC 60068-2-6

10 ... 500 Hz: 5g

mechanical service life (operating cycles) typical

3 000 000

electrical endurance (operating cycles) typical

600 000

Weight

19.335 g

type of voltage

AC/DC
