Version

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 120 V AC 10 %, Continuous current: 6 A, Tension-

clamp connection, Test button available: No

Order No.

1122940000

Type

TRZ 120VAC RC 1CO

GTIN (EAN)

4032248904976

Qty.

10 items

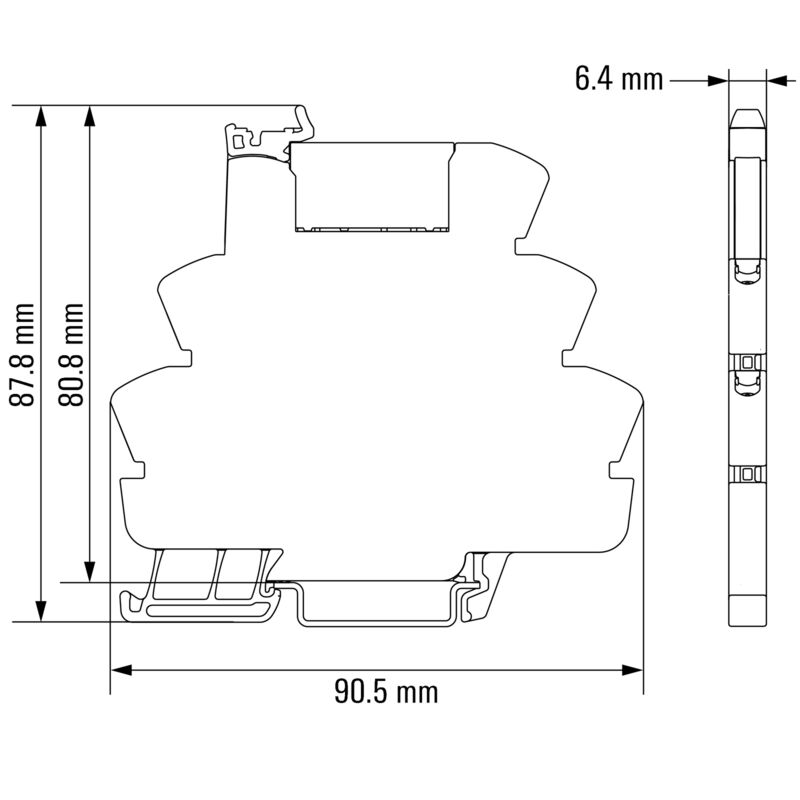

Depth

87.8 mm

Depth (inches)

3.457 inch

Height

90.5 mm

Height (inches)

3.563 inch

Width

6.4 mm

Width (inches)

0.252 inch

Net weight

32.3 g
